主要特性
* 超小型,內置放大器,NPN集電極開路輸出

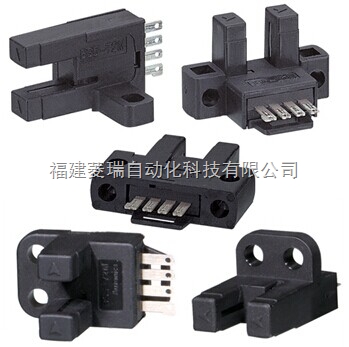

* 多種型号(K,T,L,Y,V型)适用于多種不同應用場合
* 通過控制線可選擇Light ON/Dark ON模式
* 高速響應頻率: 2kHz
* 寬電源電壓範圍: 5-24VDC
(易于連接不同的IC,繼電器,可編程控制器)
* 發射端/接收端窗口防塵保護設計
* 紅色指示燈可指示動作狀态
* 通過連接頭接插方式連接 應用場合
* 适用于小型高精密機械:LCD半導體設備,圖像檢測系統和運送裝置執行機構
* 适用于設定調色闆位置,計算數量和檢測旋轉體的起始位置
型号說明
規格表
| Model | NPN open collector output | BS5-K2M | BS5-T2M | BS5-L2M | BS5-Y2M | BS5-V2M | | PNP open collector output | BS5-K2M-P | BS5-T2M-P | BS5-L2M-P | BS5-Y2M-P | BS5-V2M-P | | Sensing distance | 5mm fixed | | Sensing type | Through-beam(Not modulated) | | Sensing target | ø0.8×2mm Opaque materials | | Hysteresis | 0.05mm | | Response time | Light ON : Max. 20㎲, Dark ON : Max. 100㎲ | | Response frequency | 2kHz(refer to the measuring range of frequency response) | | Power supply | 5-24VDC ±10%(Ripple P-P : Max. 10%) | | Current consumption | Max. 30mA(at 26.4VDC ) | | Light source | Infrared LED(950nm) | | Operation mode | Light ON / Dark ON selectable by control wire | | Control output | NPN or PNP open collector output
• Load voltage : Max. 30VDC • Load current : Max. 100mA • Residual voltage : Max. 1.2V | | Protection circuit | Reverse power polarity protection, Overcurrent protection | | Indicator | Operation Indicator: red LED | | Connection | Connector type | | Noise resistance | ±240V the square wave noise(pulse width:1㎲) by the noise simulator | | Insulation resistance | Min. 20MΩ(at 250VDC megger) | | Dielectric strength | 1,000VAC 50/60Hz for 1 minute | | Light source | Infrared LED(950nm) | | Vibration | 1.5mm or 300m/s2 amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours | | Shock | 500m/s2(approx. 50G) in each of X, Y, Z directions for 3 times | | Environ- ment | Ambient illumination | Fluorescent lamp : Max. 1000㏓ (Receiver illumination) | | Ambient temperature | -20 to 55℃, storage : -25 to 85℃ | | Ambient humidity | 35 to 85%RH, storage : 35 to 85%RH | | Protection | IP50(IEC standard) | | Material | PBT | | Approval | CE | | Unit weight | Approx. 30g |
※ The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
注意事項
1.浪湧
BS5系列未設置抗浪湧回路
使用時請注意遵守EN标準
2.外部光源
該産品未設置防止外部光源幹擾回路,請将接收器遠離外部光源幹擾
3.布接方式
和動力線、高壓線等分開布線,以避免由此造成的誤動作或産品損壞
4.幹擾發生源注意事項
若微型光電傳感器周圍有機器産生幹擾(開關穩壓器,電機等),請将機器的屏蔽線F.G接地
5.焊接(直接焊在端子上)
直接焊接在端子上時不要超過3秒(zui大溫度260℃).确認焊接時離端子根部1.5mm以上.
6.安裝
使用M3螺釘擰緊(zui大力矩0.49N·m(5.0kgf·cm).擰螺釘時,請使用墊片(Φ6).請确認光電傳感器收發光部分不與任何其他物體接觸.若該部分劃損時,産品會發生誤動作.
7.維護
若傳感器安裝在有許多灰塵或潮濕的環境中,請注意清潔接收器,用幹布擦幹發射器和接收器，沾染灰塵會發生誤動作
8.其他
安裝傳感器時遠離:
易腐蝕性氣體,油,灰塵,水蒸汽,強酸強堿,強光 ※請注意遵守上述說明以避免發生誤動作或損壞産品
注意安全
|
Major Features
* Microminiature, built-in amplifier, NPN open collector output
* Various applications available with diverse line up(K, T, L, Y, V types)
* Light ON/Dark ON mode selectable via control terminal
* High-speed response frequency : 2kHz
* Wide range of power supply : 5-24VDC
(Easy to connect with various ICs, relays, programmable controllers)
* Dust resistance structure protected by emitter/receiver window
* Red LED for operation indication
* Easy connection through optional connector sockets/cables Application Fields
* Applicable to small high precision machines including LCD, semiconductor facilities, vision systems and actuator conveyer.
* Suitable for determining palette position, counting coins and detecting rotator’s starting point
Ordering Information
Specification Table
| Model | NPN open collector output | BS5-K2M | BS5-T2M | BS5-L2M | BS5-Y2M | BS5-V2M | | PNP open collector output | BS5-K2M-P | BS5-T2M-P | BS5-L2M-P | BS5-Y2M-P | BS5-V2M-P | | Sensing distance | 5mm fixed | | Sensing type | Through-beam(Not modulated) | | Sensing target | ø0.8×2mm Opaque materials | | Hysteresis | 0.05mm | | Response time | Light ON : Max. 20㎲, Dark ON : Max. 100㎲ | | Response frequency | 2kHz(refer to the measuring range of frequency response) | | Power supply | 5-24VDC ±10%(Ripple P-P : Max. 10%) | | Current consumption | Max. 30mA(at 26.4VDC ) | | Light source | Infrared LED(950nm) | | Operation mode | Light ON / Dark ON selectable by control wire | | Control output | NPN or PNP open collector output
• Load voltage : Max. 30VDC • Load current : Max. 100mA • Residual voltage : Max. 1.2V | | Protection circuit | Reverse power polarity protection, Overcurrent protection | | Indicator | Operation Indicator: red LED | | Connection | Connector type | | Noise resistance | ±240V the square wave noise(pulse width:1㎲) by the noise simulator | | Insulation resistance | Min. 20MΩ(at 250VDC megger) | | Dielectric strength | 1,000VAC 50/60Hz for 1 minute | | Light source | Infrared LED(950nm) | | Vibration | 1.5mm or 300m/s2 amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours | | Shock | 500m/s2(approx. 50G) in each of X, Y, Z directions for 3 times | | Environ- ment | Ambient illumination | Fluorescent lamp : Max. 1000㏓ (Receiver illumination) | | Ambient temperature | -20 to 55℃, storage : -25 to 85℃ | | Ambient humidity | 35 to 85%RH, storage : 35 to 85%RH | | Protection | IP50(IEC standard) | | Material | PBT | | Approval | CE | | Unit weight | Approx. 30g |
※ The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
User's Guide
Caution for your safety
|
