Ordering Information
Specification Table

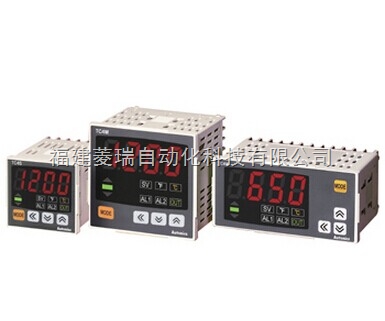

| Series | TC4S | TC4SP | TC4Y | TC4M | TC4W | TC4H | TC4L | | Power supply | AC power | 100-240VAC 50/60Hz | | AC/DC power | 24VAC 50/60HZ, 24-48VDC | | Allowable voltage range | 90 to 110% of rated voltage | | Power consumption | AC power | Max. 5VA(100-240VAC 50/60Hz) | | AC/DC power | Max. 5VA(24VAC 50/60Hz), Max. 3W(24-48VDC) | | Display method | 7Segment(Red), Other display(Green, Yellow, Red) LED | | Character size | W7×H15mm | W7.4×H15mm | W9.5×H20mm | W9.5×H20mm | W7.0×H14.6mm | W11×H22mm | | Input type | RTD | DPt100Ω(Allowable line resistance max. 5Ω per a wire) | | Thermocouple | K(CA), J(IC), L(IC) | | Display accuracy※1 | RTD, Thermocouple | ● At room temperature(23℃±5℃): (PV ±0.5% or ±1℃, select the higher one) ±1digit
● Out of room temperature range: (PV ±0.5% or ±2℃, select the higher one) ±1digit
※In case of TC4SP Series, ±1℃ will be added. | | Control output | Relay | 250VAC 3A 1 a | | SSR | 12VDC ±2V 20mA Max. | | Sub output | AL1, AL2 relay output : 250VAC 1A 1a(※TC4SP, TC4Y have AL1 only.) | | Control method | ON/OFF and P, PI, PD, PID control | | Hysteresis | 1 to 100°C/°F(0.1 to 50.0°C/°F) variable | | Proportional band(P) | 0.1 to 999.9°C/°F | | Integral time(l) | 9999sec. | | Derivative time(D) | 9999sec. | | Control period | 0.5 to 120.0sec. | | Manual reset | 0.0 to 100.0% | | Sampling period | 100ms | | Dielectric strength | AC power | 2000VAC 50/60Hzfor 1min.(Between input terminal and power terminal) | | AC/DC power | 1000VAC 50/60Hzfor 1min.(Between input terminal and power terminal) | | Vibration | 0.75mm amplitude at frequency of 5 to 55Hz(for 1 mln.) In each of X, Y, Z directions for 2 hours | | Relay life cycle | Mechanical | OUT: Over 5,000,000 times, AL1/2: Over 5,000,000 times | | Electrical | OUT: Over 200,000 times(250VAC 3A resistive load)
AL1/2: Over 300,000 times(250VAC 1A resistive load) | | Insulation resistance | Min. 100MΩ(at 500VDC megger) | | Noise resistance | ±2kV R-phase, S-phase the square wave noise (pulse width: 1us) by the noise simulator | | Memory retention | Approx. 10 years (when using non-volatile semiconductor memory type) | | Environ-ment | -10 to 50℃, storage: -20 to 60℃ | | 35 to 85%RH, storage: 35 to 85%RH | | Insulation type | Double insulation or reinforced insulation (mark: ?, Dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) | | Approval | CE, UL (Except for AC/DC power type), RoHS (TC4S) | | Unit weight | Approx. 97g | Approx. 84g | Approx. 127g | Approx. 127g | Approx. 118g | Approx. 118g | Approx. 172g |
※1: Thermocouple L(IC) type, RTD Cu50Ω
● At room temperature (23℃ ±5℃): (PV ±0.5% or ±3℃, select the higher one) ±1digit
● Out of room temperature range: (PV ±0.5% or ±4℃, select the higher one) ±1digit In case of TC4SP Series, ±1℃ will be added.
※Environment resistance is rated at no freezing or condensation.
Dimensions
Connections
User's Guide
Caution for your safety
|
